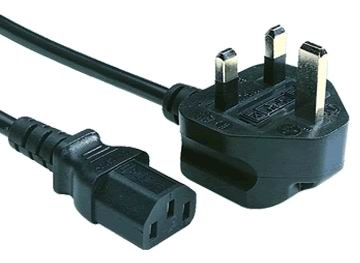

UK three prong fused power cord molded plug with the British ASTA certification

UK three prong fused power cord molded plug with the British ASTA certification
Product name : UK three prong fused power cord molded plug with the British ASTA certification
Item : D09/QT3
Details :

BS1363 and BS1363A British and UK three prong fused power cord molded plug with the British ASTA certification.  Built to the British standard BS1363 for British power cord plugs and rated up to 13A 250V~, 10A 250V~, 5A 250V~ or 3A 250V~ depending upon wire and fuse selected.  In Great Britain the electricity supplied by the normal wall inlet is called the mains power system and therefore this UK power cord plug is also referred to as the UK mains plug, the BS1363 mains plug or British mains power plug.  Our BS1363 power cords are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Our UK BS1363 power cord mains plugs are certified to the BS1363 and BS1363A standards.  The "A" in the BS 1363A means that in addition to being rated and certified for "normal use", our UK plugs are certified to withstand "rough use" environments and recommended for any custom UK mains power leads.
Our master distributor called Stay Online stocks UK BS1363 to IEC C13 cords in 6, 8 and 10 foot lengths as well as BS1363 to IEC C5, BS1363 to IEC C15, and BS1363 to IEC C19 power cords.  Just click the blue button to the left and select the desired cord.


Specifications

Items
Details
Connector Standard British BS1363 fused 3 pin plug (available in 13A, 10A, 5A and 3A versions)
Maximum Current rating 13A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.5mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals ASTA license# 839
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C13
 (IEC C13) UK
right angle IEC C13
 (IEC C13) UK
IEC C7
(IEC C7) UK
right angle IEC C7
 (IEC C7) UK
IEC C5
 (IEC C5) UK
right angle IEC C5
 (IEC C5) UK
IEC C19
 (IEC C19) UK
right angle IEC C19
 (IEC C19) UK
left angle IEC C19
 (IEC C19) UK

Available Wire Styles

Gauge/ # Conductors



Cord Type



Electrical Rating (Amps/Volts)



0.75mm² H05VV-F 10/250
1.00mm² H05VV-F 10/250
1.50mm² H05VV-F 13/250
