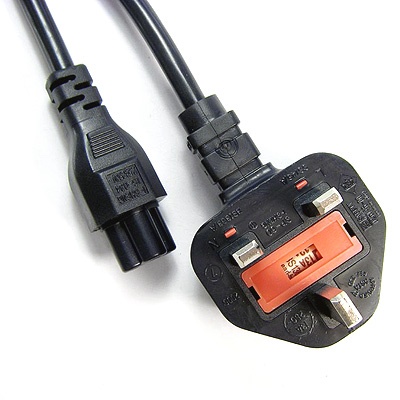

British ASTA certified 3 prong IEC C5 power cord receptacle |
|
| Product name : British ASTA certified 3 prong IEC C5 power cord receptacle |
| Item : D09/QT1 |
| Details : |
British ASTA certified 3 prong IEC C5 power cord receptacle. Built to the IEC 60320-C5 standard. Rated up to 2.5A 250V.
These UK IEC C5 connectors and all our United Kingdom products carry all necessary approvals and certifications as well as the latest REACH and RoHS approvals
Specifications
Items
Details
| Connector Standard |
IEC 60320 C5 |
| Maximum Current rating |
2.5A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.0mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
ENEC certificate# 40029577, German VDE license# 40005197 and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
BS1363 fused 3 pin plug
BS1363 UK
Available Wire Styles
| Gauge/ # Conductors
|
Cord Type
|
Electrical Rating (Amps/Volts)
|
| 0.75mm² |
H05VV-F |
2.5/250 |
| 1.00mm² |
H05VV-F |
2.5/250 |
|
 |
