IEC C19 3 prong power cord receptacle with various European approvals including VDE, OVE, CEBEC, DEMKO, FIMKO, LCIE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA. Built to the IEC320-C19 standard for use in all European countries. Rated up to 20A 250V but please be aware that the highest amperage European plug SPDS offers is 16A 250V.
Specifications
Items
Details
| Connector Standard |
IEC 60320 C19 |
| Maximum Current rating |
16A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.5mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
ENEC certificate# 40028725, German VDE license# 40023682 and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number

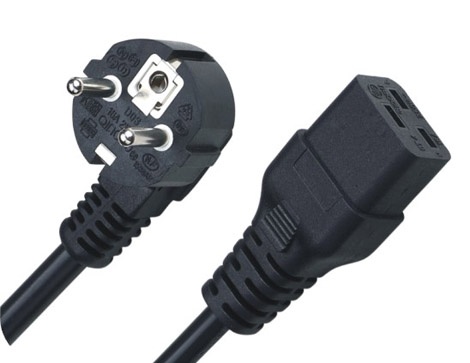

CEE7/7 Schuko 3 pin down angle plug
CEE7/7 Schuko Europe
CEE7/7 Schuko 3 pin plug
(CEE7/7 Schuko) Europe
IEC C20 3 pin plug
(IEC C20) Europe
IEC C14 3 pin plug
(IEC C14) Europe
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| |
|
|
| 1.00mm² |
H05VV-F |
10/250 |
| 1.5mm² |
H05VV-F |
16/250 |
|
