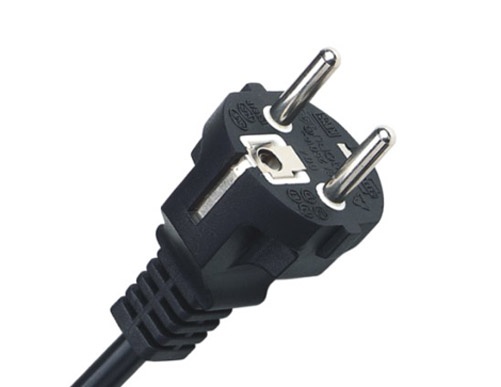

CEE7/7 European Schuko three prong power cord plug with VDE and 12 other certifications. Rated up to 16A 250V.
This item is also known as the CEE7/7 mains plug, the Schuko mains plug or just standard European mains plug and the most common plug used for European mains power leads.
Our European three prong power cord plugs carry all the European country approvals including OVE, CEBEC, DEMKO, FIMKO, LCIE, VDE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA certified. Our European power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant
Specifications
Items
Details
| Connector Standard |
Europe CEE7/7 standard Euro 3P plug |
| Maximum Current rating |
16A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.5mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
German VDE license# 40005197 and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors
|
Cord Type
|
Electrical Rating (Amps/Volts)
|
| 0.75mm² |
H05VV-F |
10/250 |
| 1.00mm² |
H05VV-F |
16/250 |
| 1.50mm² |
H05VV-F |
16/250 |
| |
|
