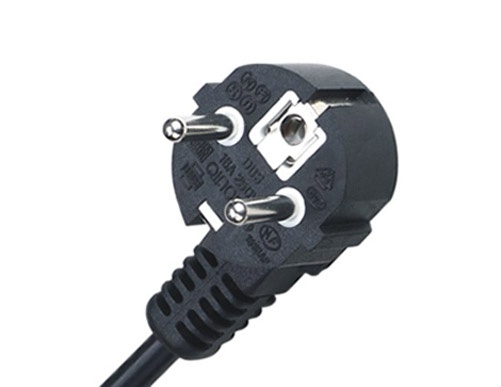

CEE7/7 European Schuko three prong right angle power cord plug with VDE and 12 other certifications. Rated up to 16A 250V. Our European three prong power cord plugs carry all the European country approvals including OVE, CEBEC, DEMKO, FIMKO, LCIE, VDE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA certified. Our European power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
The CEE7/7 is actually a combination of the French CEE7/5 which uses a male prong for grounding and the German CEE7/4 which uses straps on both sides of the plug for grounding. Almost every European country uses the Schuko CEE7/7 except the UK, Italy, Switzerland and Denmark.
Specifications
Items
Details
| Connector Standard |
Europe CEE7/7 standard Euro 3P right angle plug |
| Maximum Current rating |
16A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.5mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
German VDE license# 40005197 and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
H05VV-F |
10/250 |
| 1.00mm² |
H05VV-F |
16/250 |
| 1.50mm² |
H05VV-F |
16/250 |
| |
|
|
