PSE certified Japanese JIS C 8303 three prong power cord plug |
|
| Product name : PSE certified Japanese JIS C 8303 three prong power cord plug |
| Item : QP6/QT3 |
| Details : |
PSE certified Japanese JIS C 8303 three prong power cord plug. Rated up to 15A 125V, 12A 125V or 7A 125V. Built to the JIS-C-8303 class I grounded power cord plug standard. Our Japanese power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Specifications
Items
Details
| Connector Standard |
Japan JIS C 8303 3P plug (same as USA NEMA 5-15P plug) |
| Maximum Current rating |
15A |
| Maximum Voltage |
125V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
2.0mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Japan PSE JET project# A09T1531 and Certificate# JET5087-43001-1015 |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number

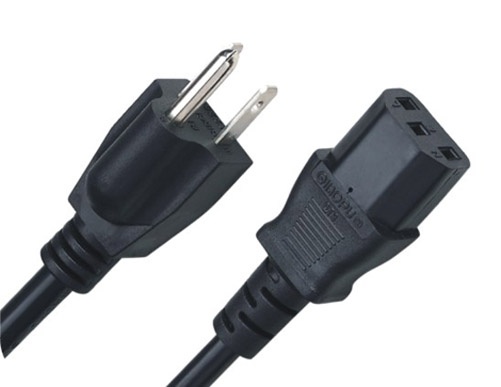

right angle IEC C13
(IEC C13) Japan
right angle IEC C5
(IEC C5) Japan
JIS C 8305 receptacle
(JIS C 8303) Japan
right angle IEC C19
(IEC C19) Japan
right angle IEC C15
(IEC C15) Japan
right angle IEC C21
(IEC C21) Japan
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
VCTF, HVCTF |
7/125 |
| 1.25mm² |
VCTF, HVCTF |
12/125 |
| 2.00mm² |
VCTF, HVCTF |
15/125 |
|
 |
