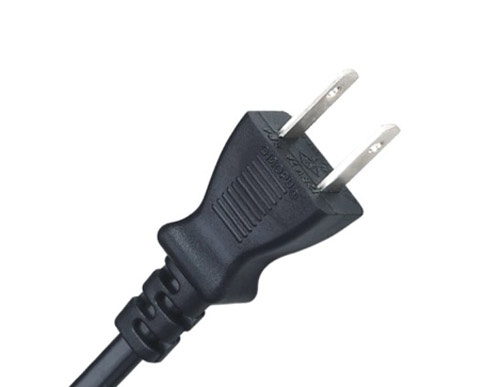

Japan class II 2 prong power cord plug with PSE certification |
|
| Product name : Japan class II 2 prong power cord plug with PSE certification |
| Item : QP4 |
| Details : |
JIS C 8303 Japan class II 2 prong power cord plug with PSE certification. Rated up to 15A 125V, 12A 125V or 7A 125V. Built to the JIS-C-8303 class II ungrounded Japanese power cord plug standard. Our Japanese power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Specifications
Items
Details
| Connector Standard |
JIS C 8303 two prong plug (same as USA NEMA 1-15P plug) |
| Maximum Current rating |
15A |
| Maximum Voltage |
125V |
| Number of Poles and Wires |
2 poles, 2 wires |
| Available Wire Thickness |
2.0mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Japan PSE JET certificate# JET5087-43001-1011 |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
right angle IEC C7
(IEC C7) Japan
JIS C 8303 receptacle
(JIS C 8303) Japan
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
VFF, HVFF, VCTF, HVCTF, VCTFK, HVCTFK |
7/125 |
| 1.25mm² |
VFF, HVFF, VCTF, HVCTF, VCTFK, HVCTFK |
12/125 |
| 2.00mm² |
VFF, HVFF, VCTF, HVCTF, VCTFK, HVCTFK |
15/125 |
|
 |
