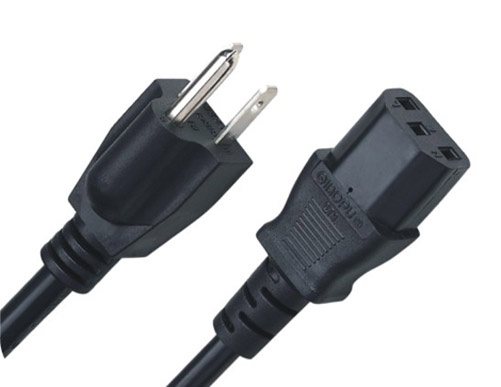

NEMA 5-15P USA 3 prong power cord plug with UL and CSA certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P standard. Our NEMA 5-15 power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Specifications
Items
Details
| Connector Standard |
NEMA 5-15P 3P plug |
| Maximum Current rating |
15A |
| Maximum Voltage |
125V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
12 through 18AWG |
| Outer Mold Material |
35P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
cUL file |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
right angle IEC C13
(IEC C13) USA
left angle IEC C13
(IEC C13) USA
up angle IEC C13
(IEC C13) USA
down angle IEC C13
(IEC C13) USA
right angle IEC C5
(IEC C5) USA
left angle IEC C5
(IEC C5) USA
NEMA 5-15R
NEMA 5-15R USA
NEMA 5-20R
NEMA 5-20R USA
right angle IEC C19
(IEC C19) USA
left angle IEC C19
(IEC C19) USA
Right angle IEC C15
(right angle IEC C15) USA
Left angle IEC C15
(left angle IEC C15) USA
right angle IEC C21
(IEC C21) USA
left angle IEC C21
(IEC C21) USA
NEMA 5-15R (times three)
USA (NEMA 5-15R times 3)
NEMA 5-20/15R (times four)
USA (NEMA 5-20/15R times 4)
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 18/3 |
SVT, SVT Shielded, SVTO, SJT, SJT Shielded, SJTW, SJTW Shielded, SJTO, SJTO Shielded, SJTOW, SJTOW Shielded, ST, ST Shielded, STW, STW Shielded, STOW, STOW Shielded, SV, SVO, SJ, SJ Shielded, SJO, SJO Shielded, SJOO, SJOO Shielded, SJOW, SJOW Shielded, SJOOW, SJOOW Shielded, S, SO, SO Shielded, SOO, SOO Shielded, SOW, SOW Shielded, SOOW, SOOW Shielded, SPT-2, SPT-3 |
10/125 |
| 17/3 |
SVT, SVTO, SV, SVO |
12/125 |
| 16/3 |
SVT, SVT Shielded, SVTO, SJT, SJT Shielded, SJTW, SJTW Shielded, SJTO, SJTO Shielded, SJTOW, SJTOW Shielded, ST, ST Shielded, STW, STW Shielded, STOW, STOW Shielded, SV, SVO, SJ, SJ Shielded, SJO, SJO Shielded, SJOO, SJOO Shielded, SJOW, SJOW Shielded, SJOOW, SJOOW Shielded, S, SO, SO Shielded, SOO, SOO Shielded, SOW, SOW Shielded, SOOW, SOOW Shielded, SPT-2, SPT-3 |
13/125 |
| 14/3 |
SJT, SJT Shielded, SJTW, SJTW Shielded, SJTO, SJTO Shielded, SJTOW, SJTOW Shielded, ST, ST Shielded, STW, STW Shielded, STOW, STOW Shielded, SJ, SJ Shielded, SJO, SJO Shielded, SJOO, SJOO Shielded, SJOW, SJOW Shielded, SJOOW, SJOOW Shielded, S, SO, SO Shielded, SOO, SOO Shielded, SOW, SOW Shielded, SOOW, SOOW Shielded, SPT-3 |
15/125 |
| 12/3 |
SJT, SJT Shielded, SJTW, SJTW Shielded, SJTO, SJTO Shielded, SJTOW, SJTOW Shielded, ST, ST Shielded, STW, STW Shielded, STOW, STOW Shielded, SJ, SJ Shielded, SJO, SJO Shielded, SJOO, SJOO Shielded, SJOW, SJOW Shielded, SJOOW, SJOOW Shielded, S, SO, SO Shielded, SOO, SOO Shielded, SOW, SOW Shielded, SOOW, SOOW Shielded, SPT-3 |
15/125 |
|
