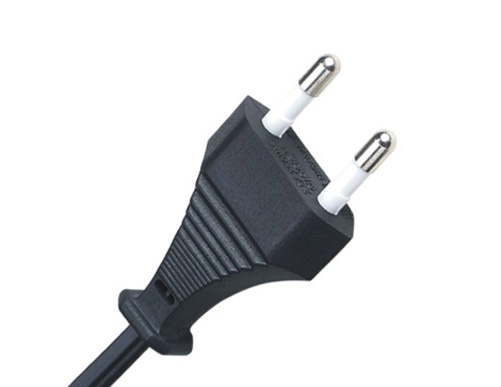

SEV 1011-2 Swiss two prong power cord plug with ESTI certification. Rated up to 2.5A 250V. Built to the Swiss power cord plug standard SEV 1011-2. Our Switzerland power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant
Our master distributor called Stay Online stocks
Swiss CEE7/16 to IEC C7 cords in 6 foot and two meter lengths as well as CEE7/16 extension cords in 10 foot length.
Specifications
Items
Details
| Connector Standard |
SEV 1011 2P plug (same as CEE7/16 standard Euro 2P plug) |
| Maximum Current rating |
2.5A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 2 wires |
| Available Wire Thickness |
0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Swiss ESTI certificate# 10.0942 , German VDE license# 40005197 and many others |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
IEC C7
(IEC C7) Switzerland
right angle IEC C7
(IEC C7) Switzerland
Available Wire Styles
| Gauge/ # Conductors
|
Cord Type
|
Electrical Rating (Amps/Volts)
|
| 0.75mm² |
H03VVH2-F |
2.5/250 |
