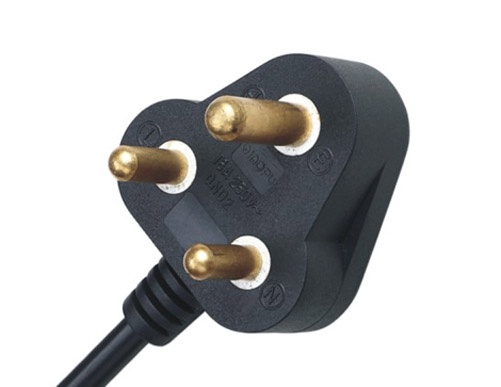

SANS 164-1 (aka BS546) South Africa three prong industrial plug with SABS certification |
|
| Product name : SANS 164-1 (aka BS546) South Africa three prong industrial plug with SABS certification |
| Item : D19 |
| Details : |
SANS 164-1 (aka BS546) South Africa three prong industrial plug with SABS certification. Rated up to 16A 250V or 10A 250V.
This South Africa power cord plug is the most common one used in South Africa and is also known as the SANS 164-1 plug standard.
Our South Africa power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant
Our master distributor called Stay Online stocks South Africa SANS 164-1 to IEC C13 cords in 6, and 8 foot lengths as well as SANS 164-1 to IEC C19 power cords. Just click the blue button to the left and select the desired cord.
Specifications
Items
Details
| Connector Standard |
South Africa SANS 164-1 plug (same as British standard BS546) |
| Maximum Current rating |
16A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.5mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
South Africa SABS certificate# HC/88293/U291 |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
IEC C13
(IEC C13) South Africa
right angle IEC C13
(IEC C13) South Africa
IEC C7
(IEC C7) South Africa
right angle IEC C7
(IEC C7) South Africa
IEC C5
(IEC C5) South Africa
right angle IEC C5
(IEC C5) South Africa
IEC C19
(IEC C19) South Africa
right angle IEC C19
(IEC C19) South Africa
left angle IEC C19
(IEC C19) South Africa
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
H05VV-F |
10/250 |
| 1.00mm² |
H05VV-F |
16/250 |
| 1.50mm² |
H05VV-F |
16/250 |
|
 |
