Italy two prong power cord plug with IMQ certification

Italy two prong power cord plug with IMQ certification

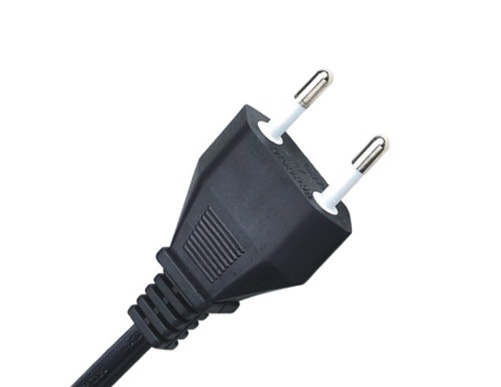

Product name : Italy two prong power cord plug with IMQ certification
Item : D07
Details :
CEI 23-16 Italy two prong power cord plug with IMQ certification.  Rated up to 2.5A 250V.  Build to the CEI 23-16 and CEE7/16 Italy power cord standard.  Our Italian power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant
Our master distributor called Stay Online stocks Italy CEE7/16 to IEC C7 cords in 6 foot and two meter lengths as well as CEE7/16 extension cords in 10 foot length

Specifications

Items
Details
Connector Standard CEI 23-16 2P plug (same as CEE7/16 standard Euro 2P plug)
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals Italy IMQ certificate# CA02.03288, German VDE license# 40005197 and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C7
 (IEC C7) Italy
right angle IEC C7
(IEC C7) Italy

Available Wire Styles

Gauge/ # Conductors



Cord Type



Electrical Rating (Amps/Volts)



0.75mm² H03VVH2-F 2.5/250
