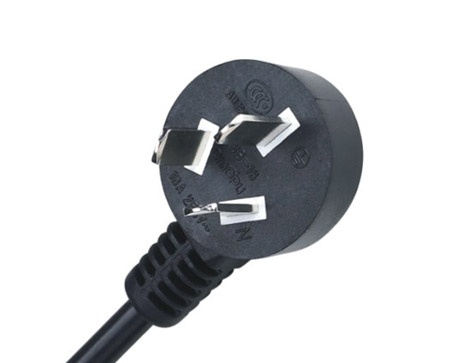

China CCC certified three prong power cord plug |
|
| Product name : China CCC certified three prong power cord plug |
| Item : PSB-10 |
| Details : |
China CCC certified three prong power cord plug. Rated up to 10A 250V. Our China GB2099 power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Specifications
Items
Details
| Connector Standard |
GB2099 3P right angle plug |
| Maximum Current rating |
10A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.5mm, 1.0mm or 0.75mm |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
China CCC approval# 2007010101249051 |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
right angle IEC C13
(IEC C13) China
right angle IEC C5
(IEC C5) China
right angle IEC C19
(IEC C19) China
left angle IEC C19
(IEC C19) China
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
RVV + H05VV-F |
10/250 |
| 1.00mm² |
RVV + H05VV-F |
10/250 |
| 1.50mm² |
RVV + H05VV-F |
10/250 |
|
 |
