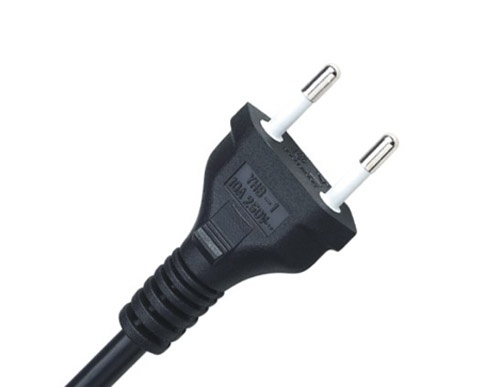

Brazil to C7 power cord: NBR 6147 Brazil standard 2 pin plug to IEC C7

Brazil to C7 power cord:  NBR 6147 Brazil standard 2 pin plug to IEC C7
Product name : Brazil to C7 power cord: NBR 6147 Brazil standard 2 pin plug to IEC C7
Item : D14
Details :
Brazil to C7 power cord NBR 6147 Brazil standard 2 pin plug to IEC C7 with H05VVH2-F 0.75mm2 wire black power cord.  6 feet with Brazil InMetro approval.
Our master distributor, Stay Online, stocks this Brazil NBR 6147 to IEC C7 power cord.  Just click the blue button to the left for this exact cord or click this link for all the Brazilian power cords they offer

Specifications

Items
Details
Male Plug Brazil NBR 6147 2P (molded with 50P PVC)
Female Receptacle IEC60320 C7 (molded with 50P PVC)
Wire Jacket Standard H03VVH2-F
Gauge 0.75mm²
Conductors 2 Wire
copper wire stranding 24 strands of 0.202±0.01mm
Jacket Material PVC
Temperature Rating Up to 70°C
Wire Outer Diameter 3.4 ± 0.1mm by 5.6±0.15mm (Two dimensions because this is not round wire)
Conductor Color Code Blue, Brown; ECC (European color code)
Voltage Up to 250 Volts AC
Amperage Up to 2.5 Amps
Cord Length 6 Feet
Color Black
Number per carton 150
Carton Weight 31.1 lbs (14.1kg)
Carton Dimensions 40 X 30 X 23cm (15.75 X 11.8 X 9 inches)
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications Brazil INMETRO, Brazil UCIEE
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China
