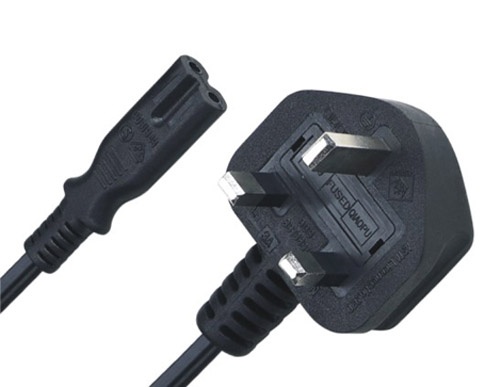

Singapore Power Cord products with PSB Spring certification

Singapore Power Cord products with PSB Spring certification
产品名称:Singapore Power Cord products with PSB Spring certification
产品编号:Y006A
详细说明:

Singapore Power Cord products with PSB Spring certification are manufactured to PSB and IEC standards; designed for Singapore and Malaysia power cord applications.  The Singapore plug standard is sometimes call the SS145/a or just SS 145 Singapore power cord plug standard.  We stock literally thousands of two and three prong Singapore power cords in standard configurations and can make any custom version as well.

Singapore power cords use the UK BS1363 fused plug standard but must carry the PSB Spring approvals.

100% of our Singapore power cords are fully molded high quality cords and RoHS and REACH compliant.


Specifications

Items
Details
Connector Standard Singapore fused 3 pin plug (same as the UK BS1363 plug)
Maximum Current rating 13A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.5mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals PSB Singapore certificate# 082306-11
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C13
(IEC C13) Singapore

right angle IEC C13
 (IEC C13) Singapore


IEC C7
 (IEC C7) Singapore

right angle IEC C7
 (IEC C7) Singapore


IEC C5
 (IEC C5) Singapore

right angle IEC C5
 (IEC C5) Singapore


IEC C19
 (IEC C19) Europe

IEC C15
 (IEC C15) Europe


IEC C21
 (IEC C21) Europe



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 10/250
1.00mm² H05VV-F 10/250
1.50mm² H05VV-F 13/250
