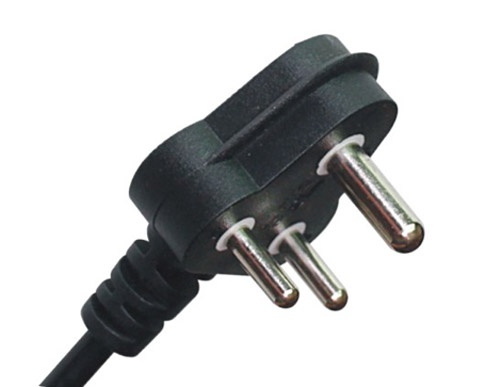

SANS 164-3 6A(aka BS546) South Africa standard power cord plug with SABS certification

SANS 164-3  6A(aka BS546) South Africa standard power cord plug with SABS certification
产品名称:SANS 164-3 6A(aka BS546) South Africa standard power cord plug with SABS certification
产品编号:D18
详细说明:
SANS 164-3 (aka BS546) South Africa standard power cord plug with SABS certification.  Rated up to 6A 250V.  Fully conforms to the BS546 and SANS 164-3 plug standards.  Our South Africa power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Our master distributor called Stay Online stocks South Africa SANS 164-3 to IEC C13 cords in 6 feet long as well as SANS 164-3 to IEC C7 power cords.  Just click the blue button to the left and select the desired cord.

Specifications

Items
Details
Connector Standard South Africa SANS 164-3 plug (same as British standard BS546)
Maximum Current rating 6A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.0mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals South Africa SABS certificate# HC/88293/U291
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C13
 (IEC C13) South Africa

right angle IEC C13
(IEC C13) South Africa


IEC C7
 (IEC C7) South Africa

right angle IEC C7
 (IEC C7) South Africa


IEC C5
 (IEC C5) South Africa

right angle IEC C5
 (IEC C5) South Africa


IEC C19
 (IEC C19) South Africa

right angle IEC C19
 (IEC C19) South Africa


left angle IEC C19
(IEC C19) South Africa

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 6/250
1.00mm² H05VV-F 6/250
