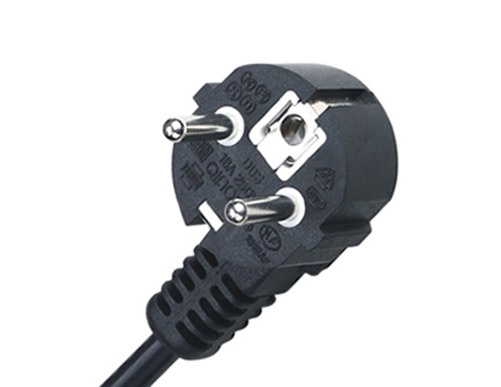

Denmark three prong power cord plug with DEMKO certification |
|
| 产品名称：Denmark three prong power cord plug with DEMKO certification |
| 产品编号：Y011 |
| 详细说明： |
Denmark three prong power cord plug with DEMKO certification. Rated up to 10A 250V. Our Danish power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant. The Denmark compliance agency called DEMKO recognizes both plug standard AFSNIT 107-2-D1 and SRAF 1962/DB 16/87 as acceptable and are identical for the Danish power cord three prong plug as well as the standards DS 60884-2-D1 and IEC 60884-1.
Specifications
Items
Details
| Connector Standard |
Denmark AFSNIT 107-2-D1 3P plug |
| Maximum Current rating |
10A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.0mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Denmark DEMKO certificate# 131824-01 |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
IEC C13
(IEC C13) Denmark
right angle IEC C13
(IEC C13) Denmark
right angle IEC C5
(IEC C5) Denmark
left angle IEC C5
(IEC C5) Europe
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
H05VV-F |
10/250 |
| 1.00mm² |
H05VV-F |
10/250 |
|
 |
|
|
